Details

TECHNICAL DETAILS FOR TF 35

– Combustion chamber power : 18.7 kW (25.4 hp)
– Fuel consumption : 2 l/h
– Fuel tank capacity : 1.2 l
– Normal petrol fuel
– Working pressure in the fuel tank : 0.08 bar (8,000 Pa)
– Electronic ignition, power supply type : 4 x 1.5 batteries (Type LR20)
– Sprayed solution flow/exit : 8-42 l/hour
– Distribution nozzles : 0,6-2 mm
– Residual liquid in the tank if the appliance is
in horizontal position : 0.25 L
– 10˚ tilt down under : 0.03 L
– Fuel tank capacity : 5.7 l
– Working pressure in the substance tank : 0.25 bar (25,000 Pa)
– Weight empty tank : 7.9 kg
– Dimensions (w x h x L) : 27 x 34 x 137.5 cm
– TF 35 with standard tube of the mist substance.

ADDITIONAL INFORMATION

Origin : Germany
Manufacturer : Igeba
Packaging : 1 unit
Destination use : Population, Professionals, Trained personnel
Formulations : No
Apparatus Type : Thermal Foggers
Apparatus Mobility : Hand Carried
Color : White
Tank Capacity : 5.7 litres
Power : Petrol Engine

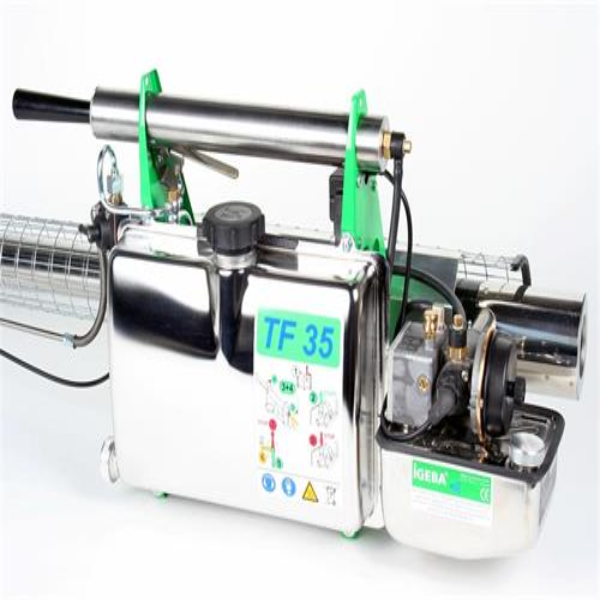

The most important control elements of the standard model Igeba TF 35 are:

– the air pump;
– substance tap;
– substance tank;
– start engine button:
– fuel tank;
– adjustment pin;
– stop button;
– socket with a nozzle for fog substance;
– fog substance tube.

 WARRANTY

WARRANTY : 5 years
